Factory Customized Double-Layer Insulated Glass Balcony Railing Windows 5-12mm Thick Tempered Glass for Office Exterior Bathroom

Product Description

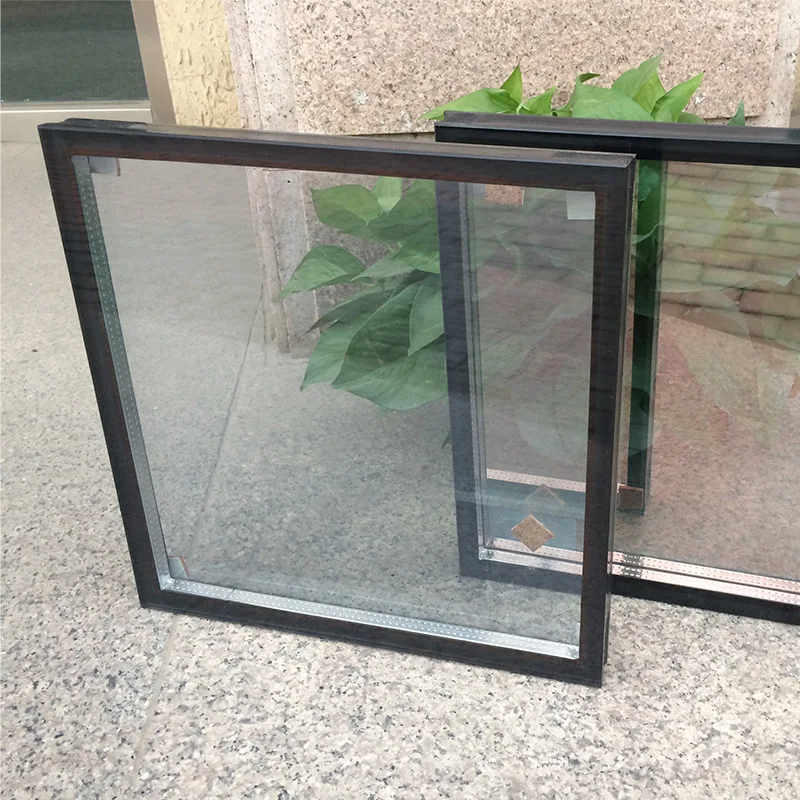

Insulating glass, also called insulated glass, are sealed units. It refers to two or more lites of glass glazed along the edges
with spacers. The composed glass could be monolithic, or laminated glass, with or without coatings ( low e coating as typical).There are types of spacers available, such as stainless steel, aluminum, warm edge spacers in various colors. The space between the glass is sometimes filled with noble gas, such as argon or krypton. 90% filled, which is more helpful to reduce energy consuming. The most common architectural insulating glass unit configuration is 1/4" glass, 1/2" air space and 1/4" glass.

We always call it double glazed glass units, triple glazed glass units for its processing way, or sometimes it is called as double pane glass, or triple pane glass panels.

Commonly referred to as an “IGU,” insulating glass is the most effective way to reduce mair-to-air heat transfer through the glazing. When used in conjunction with low-E or reflective glass coatings, IGUs become an effective means to save energy.

Factory Customized Double-Layer Insulated Glass Balcony Railing Windows 5-12mm Thick Tempered Glass for Office Exterior Bathroom supplier

Factory Customized Double-Layer Insulated Glass Balcony Railing Windows 5-12mm Thick Tempered Glass for Office Exterior Bathroom manufacture

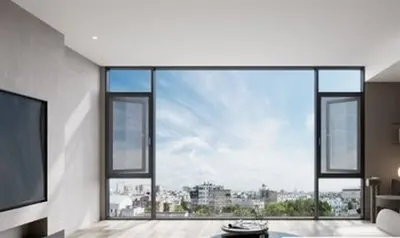

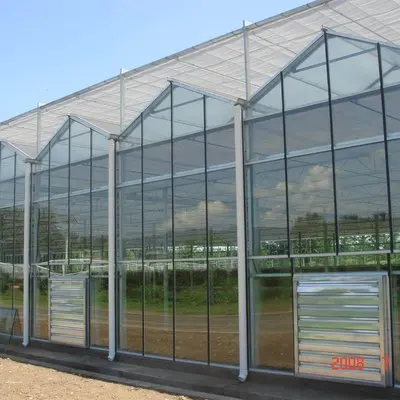

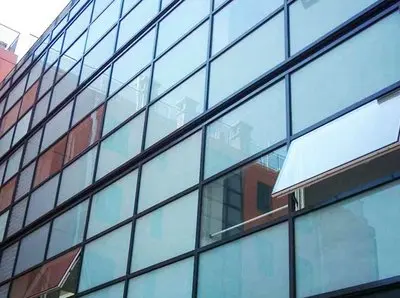

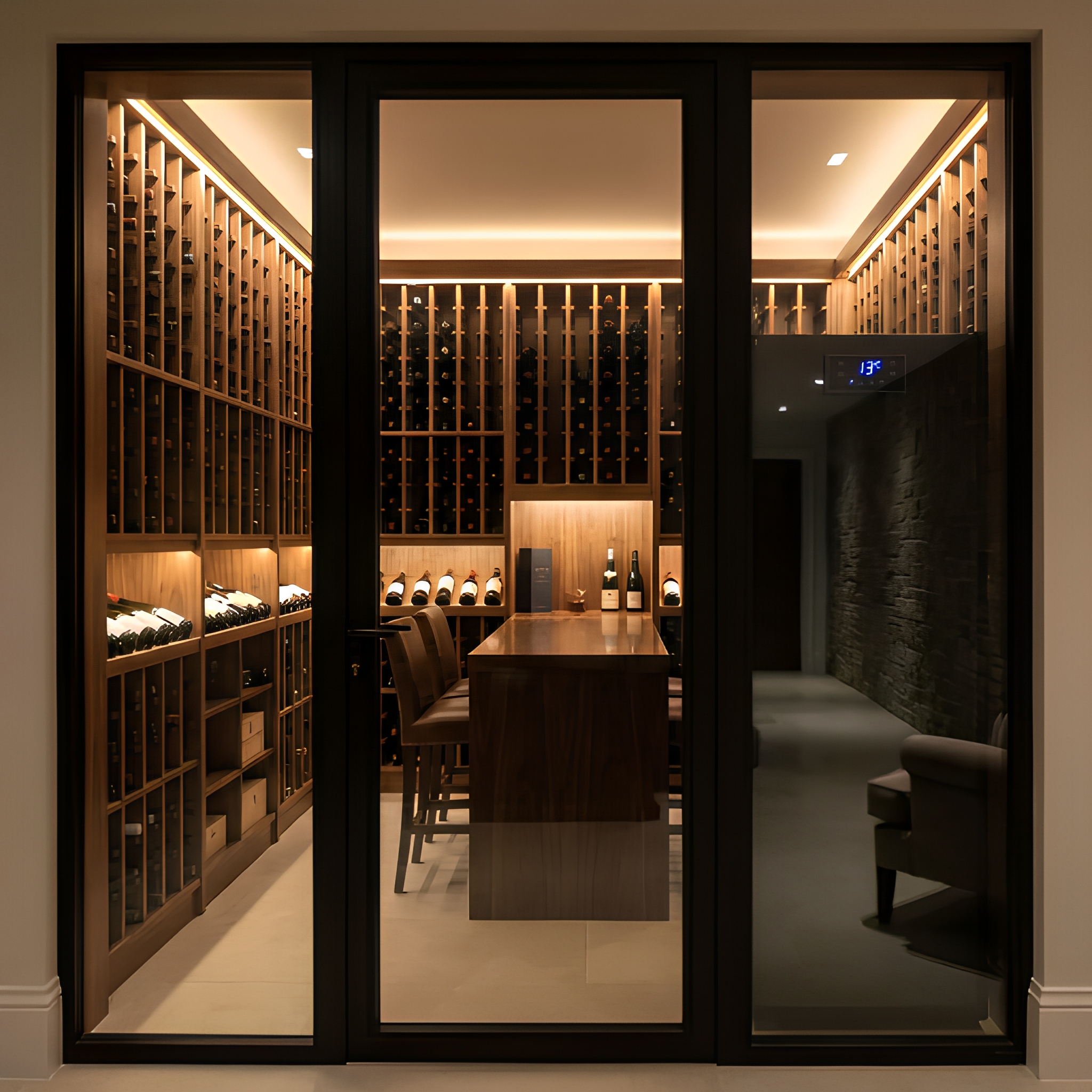

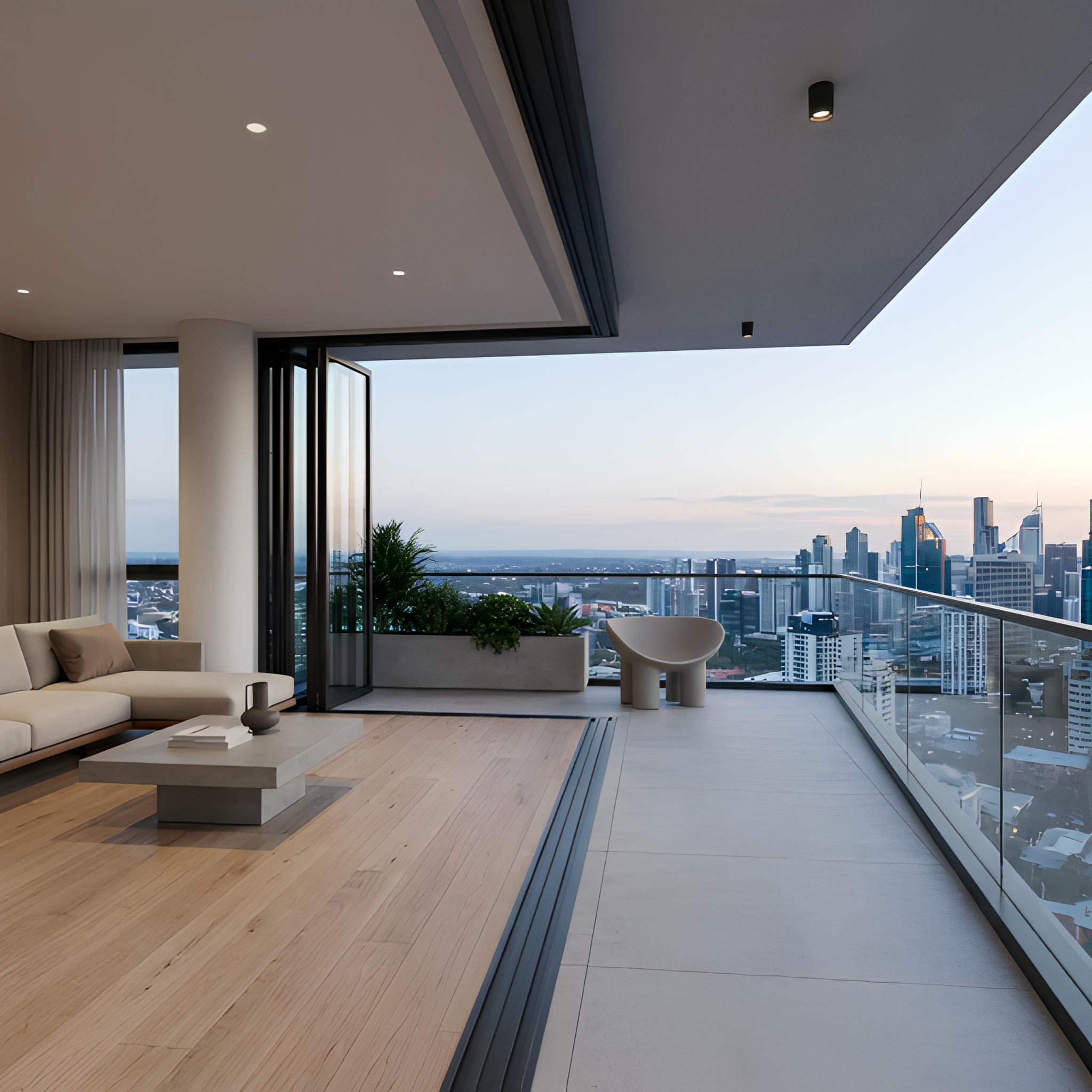

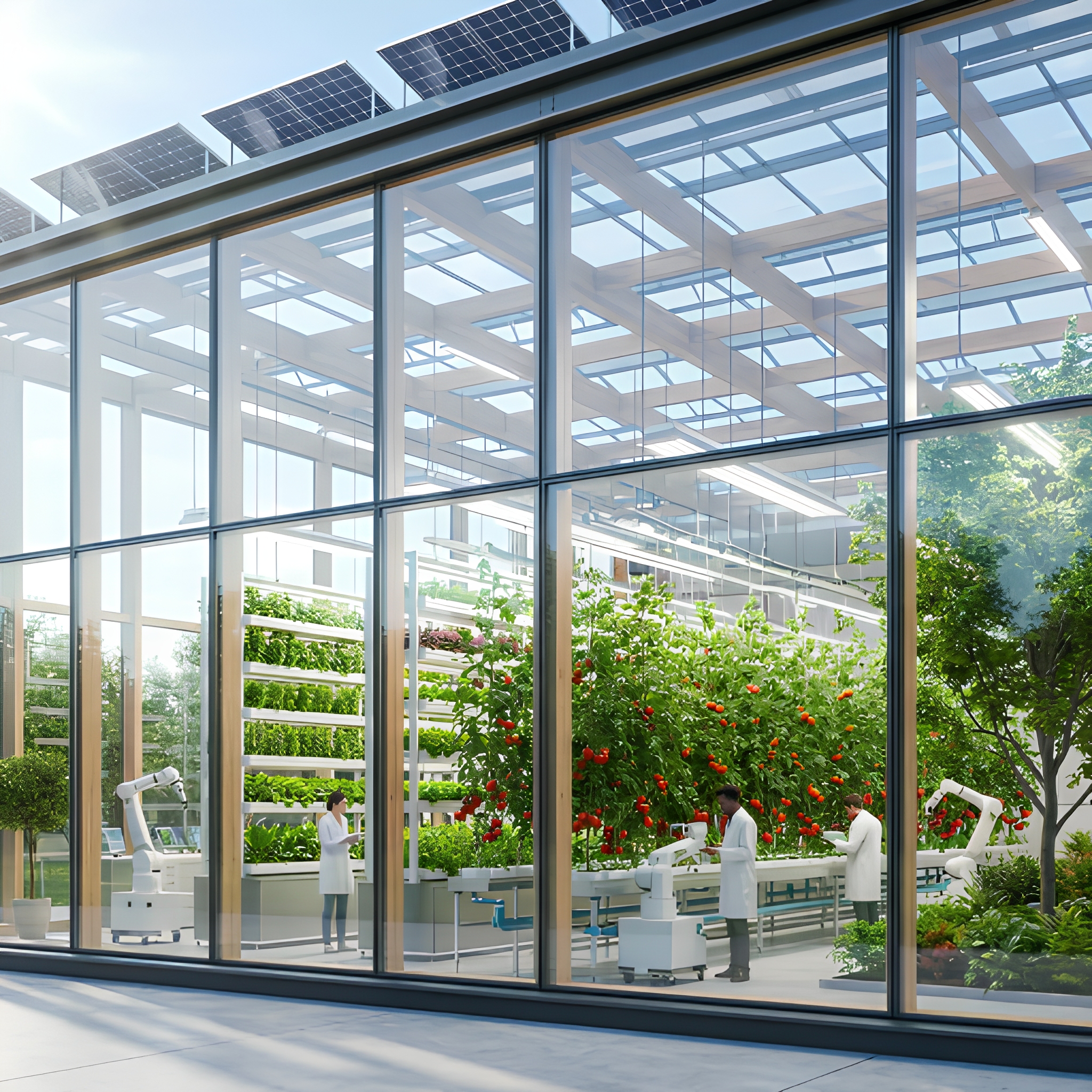

Project Reference

Factory Customized Double-Layer Insulated Glass Balcony Railing Windows 5-12mm Thick Tempered Glass for Office Exterior Bathroom factory

Specification

Glass Type	Insulating Glass
Double Glass Thickness	3mm+6A+3mm,5mm+6A+5mm, 6mm+9A+6mm, 6mm+12A+6mm, 6mm+16A+6mm,etc. 3mm+6Ar+3mm,5mm+6Ar+5mm, 6mm+9Ar+6mm, 6mm+12Ar+6mm, 6mm+16Ar+6mm,etc.
Glass Combination Type	Tempered Insulating glass, Laminated Insulating Glass, Low-e Insulating Glass, Frosted Insulating Glass, Silkscreen Printing Insulating Glass, Digital Printed Insulating Glass, Chrome Privacy Insulated Glass,etc.
Low E Type	Double silver low e, triple silver low e, online hard coated low e: Vitro Solarban 60, Solarban 70, Guardian SN54 SN68 SN62/27, Saint Gobain low e and so on
Spacer Options	Stainless steel, aluminum, TGI( warm spacer) , super spacer
Spacer Thickness	6mm, 9mm, 12mm, 16mm, 19mm(1/4'',11/32'',1/2'',9/16'',19/32'',5/8'')etc
Gas Filling	Air, Argon, Krypton,etc
Glass Color Option	Clear, Low Iron, Super White, Super Clear, Extra White, Starphire, Optiwhite, Euro Grey, Dark Grey, Crystal Grey, Brown, Bronze, Ocean Blue, Ford Blue, Dark Blue,etc.
Edge Processing	Flat Edge, Seamed Edge, Polished Edge, Bevelled edge, Flat Polished Edge, Round Edge
Irregular Shape	Rectangular, Round, Oval, Trapezoid, Parallel, etc. All edges can be bright polished.
Hole & Notch Available	Countersunk holes, round holes, bell-mouth holes, simple notch, mickey ears cutouts, etc. The edge of hole and notch can be polished by CNC

About us.

Shanghai Wuyong Glass, located in Songjiang District, Shanghai, was established in 2013. It is one of the production bases in Shanghai specializing in the production of special safety energy-saving glass, building energy-saving doors and windows, curtain walls, and solar photovoltaic systems.

The factory currently covers an area of over 10000 square meters and has more than 80 employees, including over 20 senior personnel in the construction industry, as well as 150 cooperative franchisees. Over the past two decades of development and exploration, Shanghai Wuyong Glass Factory has adhered to the spirit of dedication, responsibility,and striving for integrity in serving its customers.

We understand that today's service and quality will be tomorrow's customers and reputation.

FAQ

Q: Can I received free sample?
A: Sure, we welcome sample to be tested and checked quality.

Q: Can I mix different type of glass in container?
A: Yes, we support different size or thickness of processing glass.

Q: What's the production time?
A: Generally need 7-15 business days to produce, if you need glass more faster, we can also provide urgently order service.

Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production line, and discussing orders in our office.

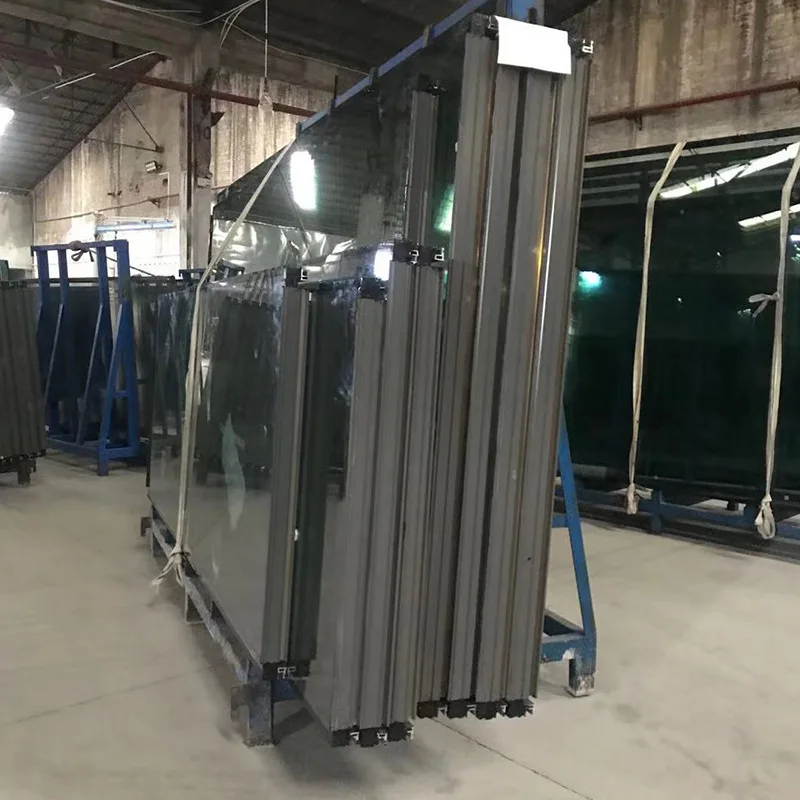

Packing

We always pack the tempered glass in strong export plywood crates, and load them safety in the container with metal belt, to make sure no damage during transportation. If have any damage, we will replace or refund with the fastest way.
