Factory Direct Curved PVB Tempered Laminated Glass 8mm 10mm 12mm Bent Double Tempered Hot Bending Plate Outdoor Staircase Entry

Product Description

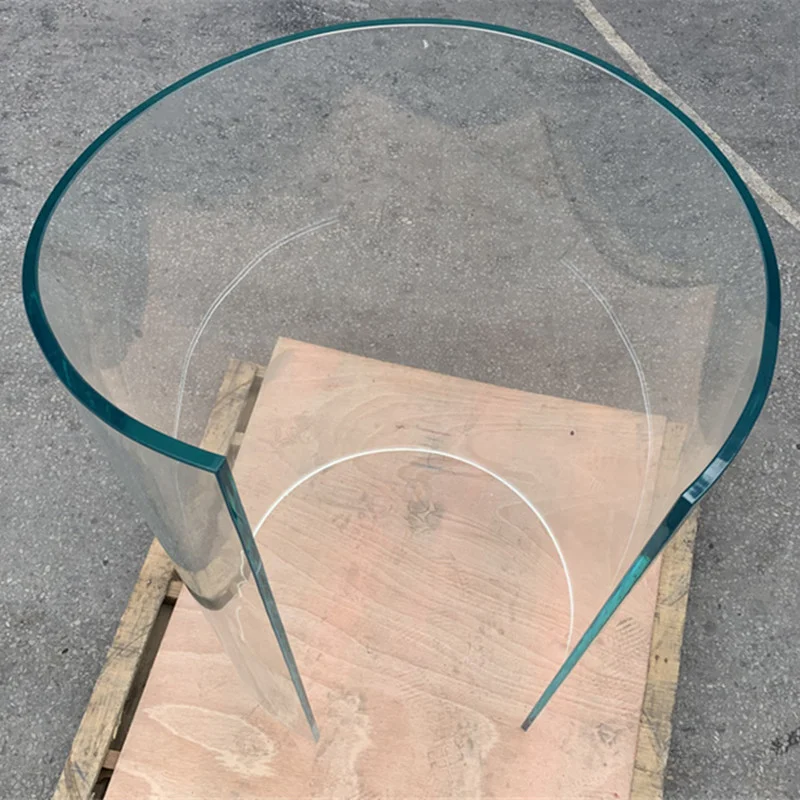

Curved Tempered Glass

Advantage: 5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body. It withstands abrupt temperature change of 300 Centigrade. Sizes are produced as per customer request. Once tempered, it can not be cut down.

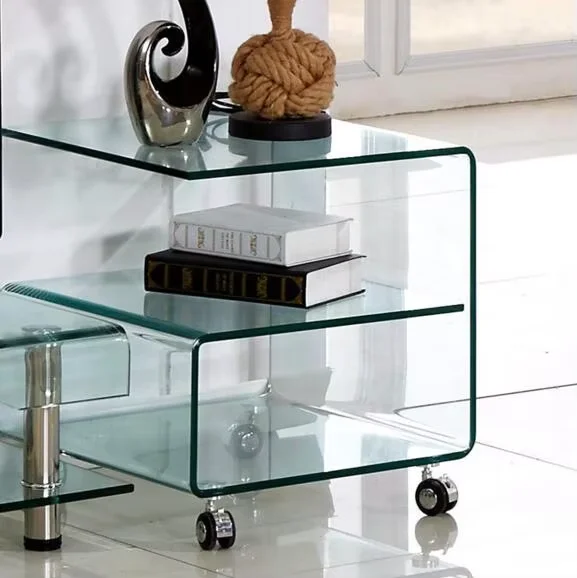

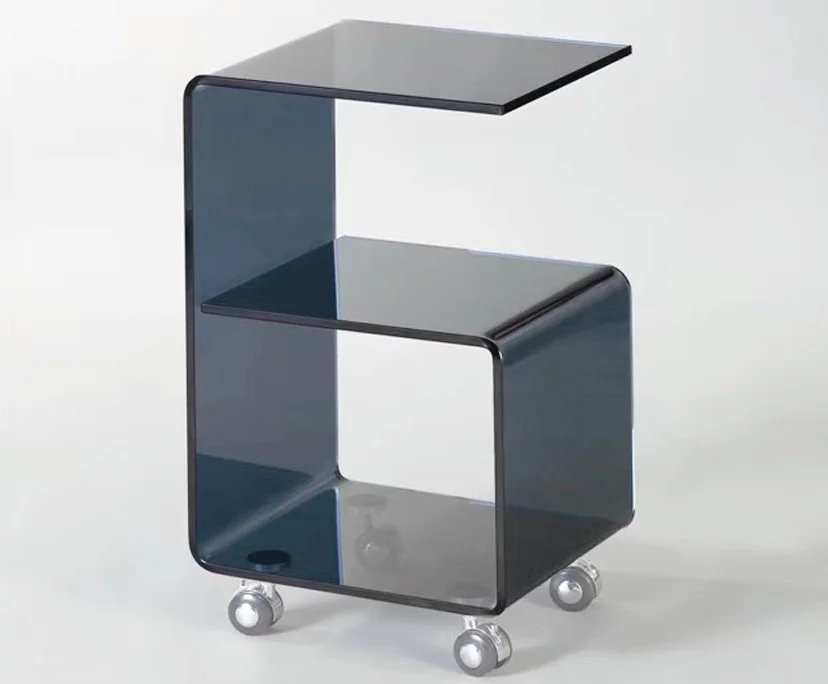

Application: External use of show windows, doors, ship fronts in offices, houses, shops etc. Interior glass screens, partitions, balustrades etc. Shop display windows, showcases, display shelves etc. Furniture, table-tops, etc. Fireplace,Microwave, etc.

(1) Single Bent Glass For a single curved architectural glass, glass bending is relatively easy. However, many China hot bend glass manufacturers often have a curve edge of approximately 150 mm from the straight side of the product, which cannot be well matched with the mold, and some of them exceed the standard requirements, resulting in difficulty in installation. To solve this problem, it is first required that the electric heating arrangement of the hot bending furnace should be reasonable, and local heating can be realized, and the direction in which the product is placed should be consistent with the direction of the heating wire.

(2) Bending Glass Commonly used in bending hot-bending glass are aquarium glass and counter glass. The biggest technical difficulty of bending glass is that the straight side is curved, and the corner is prone to mold defects. Therefore, curved glass is also very common, such as spherical glass, curved arched profiles, glass wash basins, etc. This glass requires a high level of skill in hot bending operations, making precise molds, and some require professional heat. The curved furnace can be completed.

(3) Composite Bent Glass Compound curved glass is also common, such as spherical glass, curved arched corridors, glass wash basins, etc. This kind of glass requires a high level of skill in the hot bending operation mountain, making accurate molds, and colleagues need professional hot bending. The furnace can be completed Therefore, the price of hot bending glass is different according to different types and technical requirements, and the hot bent glass price change is also very obvious.

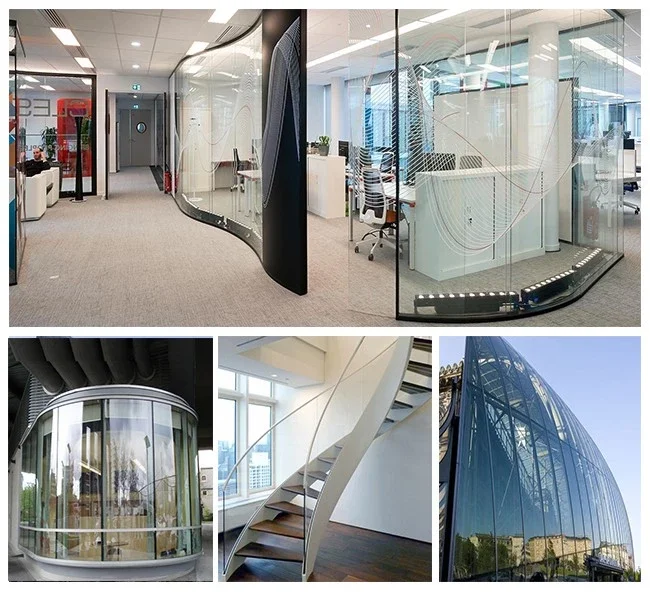

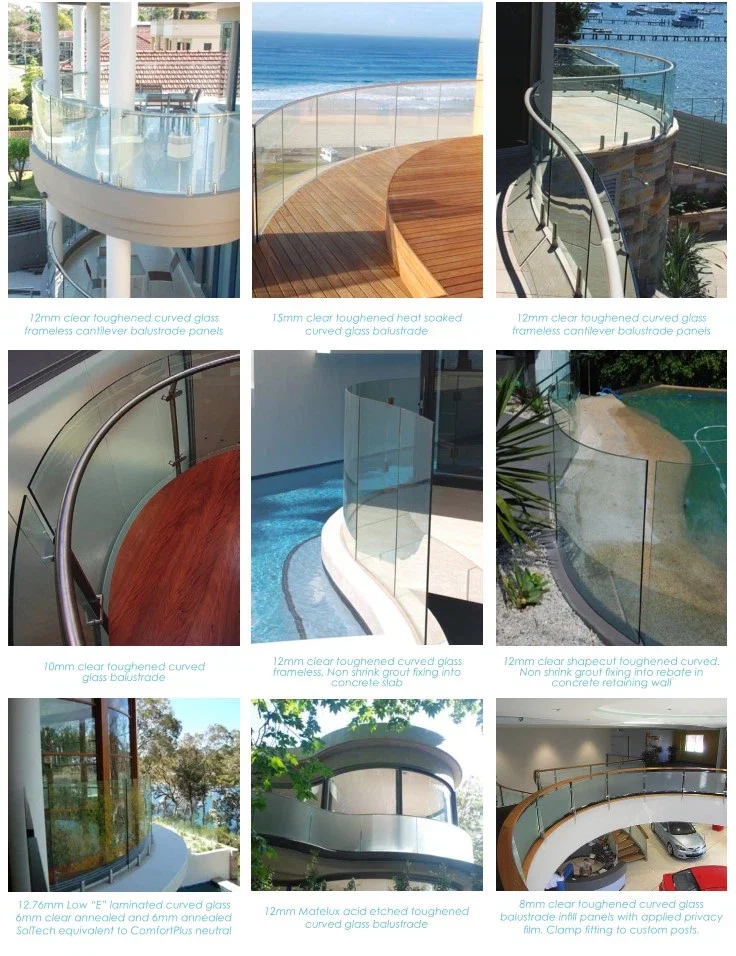

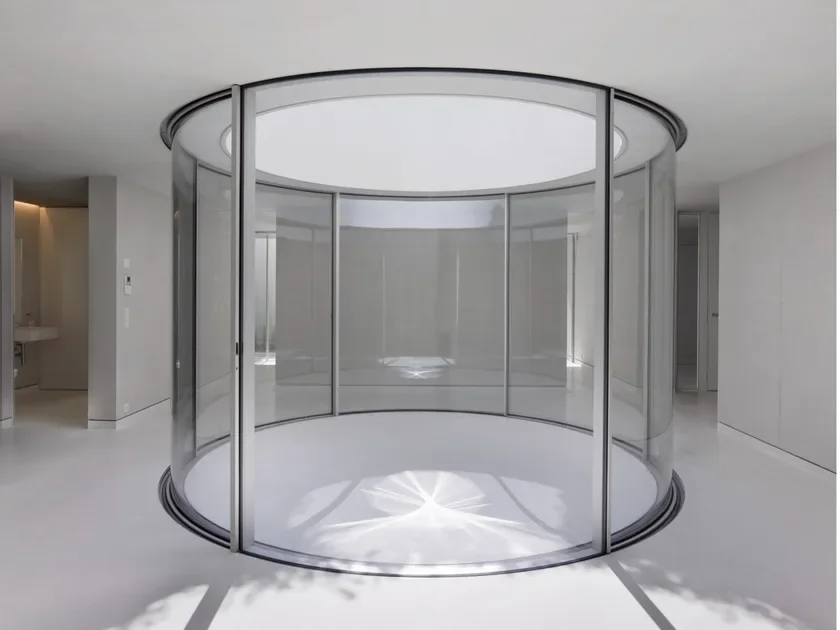

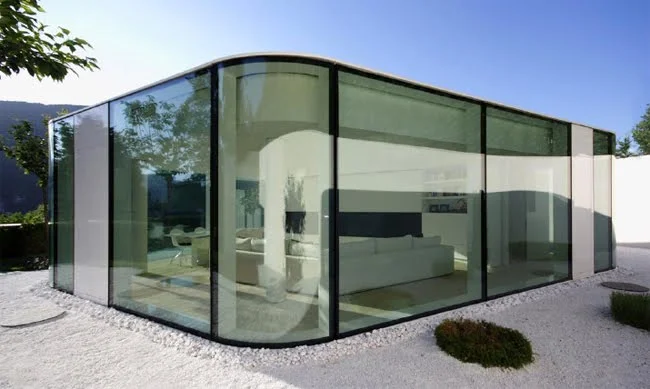

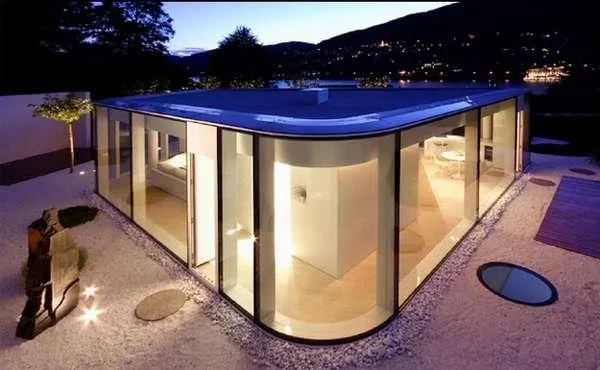

Project Reference

Factory Direct Curved PVB Tempered Laminated Glass 8mm 10mm 12mm Bent Double Tempered Hot Bending Plate Outdoor Staircase Entry details

Factory Direct Curved PVB Tempered Laminated Glass 8mm 10mm 12mm Bent Double Tempered Hot Bending Plate Outdoor Staircase Entry manufacture

About us

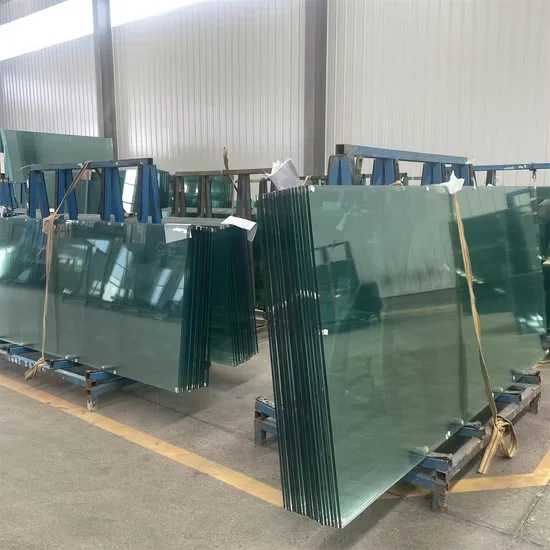

Shanghai Wuyong Glass, located in Songjiang District, Shanghai, was established in 2013. It is one of the production bases in Shanghai specializing in the production of special safety energy-saving glass, building energy-saving doors and windows, curtain walls, and solar photovoltaic systems.

The factory currently covers an area of over 10000 square meters and has more than 80 employees, including over 20 senior personnel in the construction industry, as well as 150 cooperative franchisees.

Over the past two decades of development and exploration, Shanghai Wuyong Glass Factory has adhered to the spirit of dedication, responsibility, and striving for integrity in serving its customers. We understand that today's service and quality will be tomorrow's customers and reputation.

Factory Direct Curved PVB Tempered Laminated Glass 8mm 10mm 12mm Bent Double Tempered Hot Bending Plate Outdoor Staircase Entry supplier

Specification

Product Name	Curved tempered glass
Glass thickness	5mm,6mm,8mm,10mm,12mm,15mm,19mm
Glass Types	Float Glass, Low E Glass, Patterned Glass
Application	Swimming pools、Outdoor areas such as poolside patio tables、Balcony doors、Shower doors and bathroom areas、Indoor table tops、Glass shelves、Offices and businesses、Greenhouses、etc
Tolerance	Thickness tolerance: within 0.2mm; Dimension tolerance: normally within 1mm
Edge Processing	Flat Edge, Grind Edge, Polished Edge, Bevelled edge, Flat Polished Edge, Round Edge
Size	Custom sizes Min：400x600mm Max：5500x2440mm Mini Radius 600mm
Glass color	Clear, Extra Clear, Bronze, Grey, Blue and Green, etc.

FAQ

Q: Can I received free sample?
A: Sure, we welcome sample to be tested and checked quality.

Q: Can I mix different type of glass in container?
A: Yes, we support different size or thickness of processing glass.

Q: What's the production time?
A: Generally need 7-15 business days to produce, if you need glass more faster, we can also provide urgently order service.

Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production line, and discussing orders in our office.

Packing

We always pack the tempered glass in strong export plywood crates, and load them safety in the container with metal belt, to make sure no damage during transportation. If have any damage, we will replace or refund with the fastest way.
